allPIXA SWIR 1K GigE C-Mount

CP000700-IR-01K-GE-001

allPIXA SWIR Line Scan Camera and Corona II Illumination
Real time, non-destructive inspection and sorting process with fast line rate and high sensitivity.

The allPIXA SWIR is the first short-wave infrared line scan camera in Chromasens' allPIXA family.
The state-of-the-art InGaAs sensor in a compact footprint permits integration in a broad range of machine vision applications. The camera covers a wide range of wavelengths, from 950 to 1,700 nm.

allPIXA SWIR offers an uncooled sensor with resolutions of 512 or 1k and pixel sizes 25 µm and 12.5 µm respectively, high sensitivity and a line frequency of 40 kHz. GenICam compliant GigE Vision and CameraLink interfaces allow for an easy integration into existing machine vision systems.

Materials that look identical to the human eye may differ significantly in the SWIR spectrum, as each material absorbs and reflects radiation in a different way. Within the wide wavelength range of the SWIR sensor, many substances can be identified by their typical absorption, reflection, or transmission characteristics, and they can easily be distinguished.

Typical applications are plastic sorting, seed & grain sorting and substance determination or detection of impurities in pharmaceutical processes.

In this video you can see the allPIXA SWIR and Corona II illumination in a substance determination live demo at high speed:

Description Part Number
allPIXA SWIR 512 GigE C-Mount CP000700-IR-512-GE-001
allPIXA SWIR 1K GigE C-Mount CP000700-IR-01K-GE-001

Contact us:

Are you interested in allPIXA SWIR 1K GigE C-Mount and would like individual advice? Then contact our product team.



Technical Specifications
Sensor
InGaAs line sensor
Number of pixels
1.024 x 1 Pixel
Active pixel size
12,5 µm x 12,5 µm
Max. Line rate
40 kHz
Data format
8, 10, 12 Bit
Interfaces
Gigabit Ethernet (1000BASE-T, RJ45)
Digital input
3x RS422 or LVTTL (single ended)
Digital output
2x RS422
Trigger mode
Free run / external trigger / software trigger
Protection class
IP40

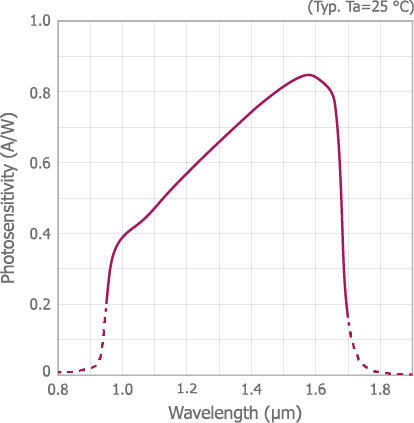

Spectral sensitivity
950 nm to 1.700 nm
Objektiv
C-Mount, other adapters on request
Certifications
2004/30/EU
EN 61326-1:2013
EN 62311:2008
RoHS
Power supply
12 V to 24 V DC +- 10%, 6 W
Operating temperature
-10 °C to 50 °C (housing temperature)
Dimensions
Length=62 mm, Height=62 mm, Depth=52 mm

Contact us:

Are you interested in allPIXA SWIR 1K GigE C-Mount and would like individual advice? Then contact our product team.



Detailed drawings and 3D-models can be found in the Download section.

Contact us:

Are you interested in allPIXA SWIR 1K GigE C-Mount and would like individual advice? Then contact our product team.



Data Sheet
Title Part Number Download
allPIXA SWIR Data Sheet *.pdf
Manual
Title Part Number Download
allPIXA SWIR Manual *.pdf
allPIXA SWIR Feature Reference 1.3.3 *.pdf
Technical Drawings (2D/3D)
Title Part Number Download
allPIXA SWIR GigE *.pdf*.zip
Certificates
Title Part Number Download
allPIXA SWIR GE - EU Declaration of Conformity *.pdf

Contact us:

Are you interested in allPIXA SWIR 1K GigE C-Mount and would like individual advice? Then contact our product team.



GCT (GenICam Camera Tool)
Title Part Number Download
GCT V2.6.1 *.zip
GCT Manual Link
CSGenICam_SDK *.pdf
CSI-CSharp.net Core *.zip
Firmware
Title Part Number Download
allPIXA SWIR Firmware > on request > support@chromasens.de
Cate (Camera Application & Test Environment in Python)
Title Part Number Download
Python SDK V1.20 *.zip

Contact us:

Are you interested in allPIXA SWIR 1K GigE C-Mount and would like individual advice? Then contact our product team.



C-Mount Adapter
Title Part Number Download
C-Mount Adapter (included in standard scope of delivery) T19212 *.pdf*.zip
F-Mount Adapter
Title Part Number Download
F-Mount Adapter (order separately if needed) T19014 *.pdf*.zip
Power Supply
Title Part Number Download
allPIXA Power Supply Cable 1.5 m CP000504-1.5
allPIXA Power Supply Cable 5 m CP000504-5.0
allPIXA Power Supply Cable 10 m CP000504-10.0
allPIXA Power Connector, 6pin, push pull (Hirose) CP000459
Alignment Adapter
Title Part Number Download
allPIXA Alignment Adapter CP000656 *.pdf*.zip
