Cooling

There are two main aspects of life time:

  • Failure by defects of single parts
  • Reduction of lumens over time

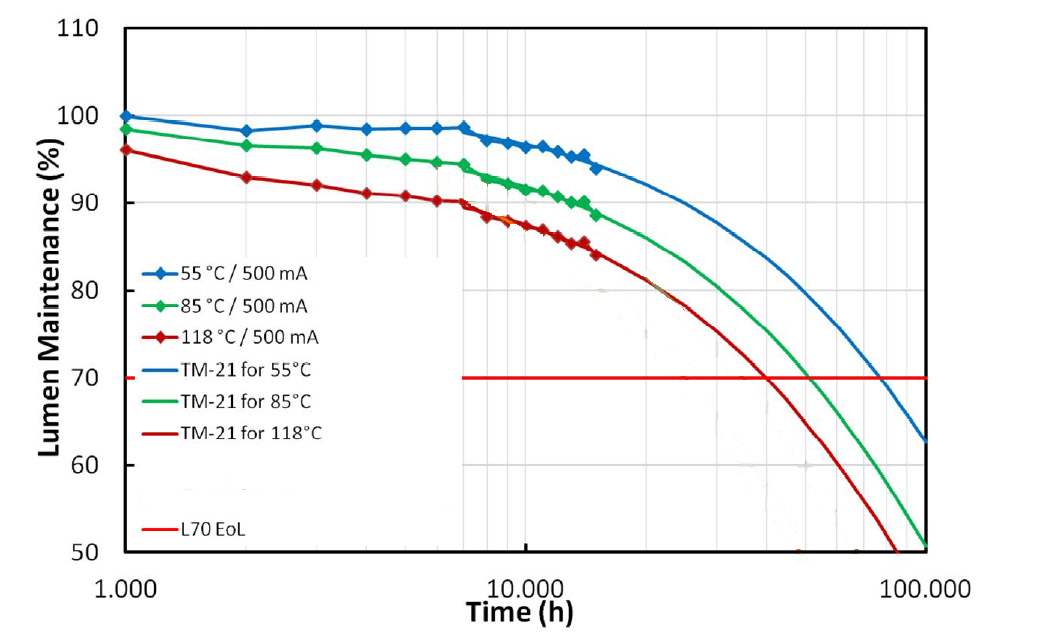

The lumen maintenance of the LED is directly correlated with the temperature of the chip. If it’s possible to keep the temperature low there will be up to 80.000 hours possible. With the highest possible temperature in the LED it will be still up to 50.000 hours. Chromasens has calculated this limits back to the housing temperatures of the modules.

Housing

40°C

60°C

75°C

Soldering point

55°C

85°C

118°C

Lumen maintanance

77.000 h

51.000 h

40.000 h

Years @ 250 days 100% operation

12 years

8,5 years

6,7 years

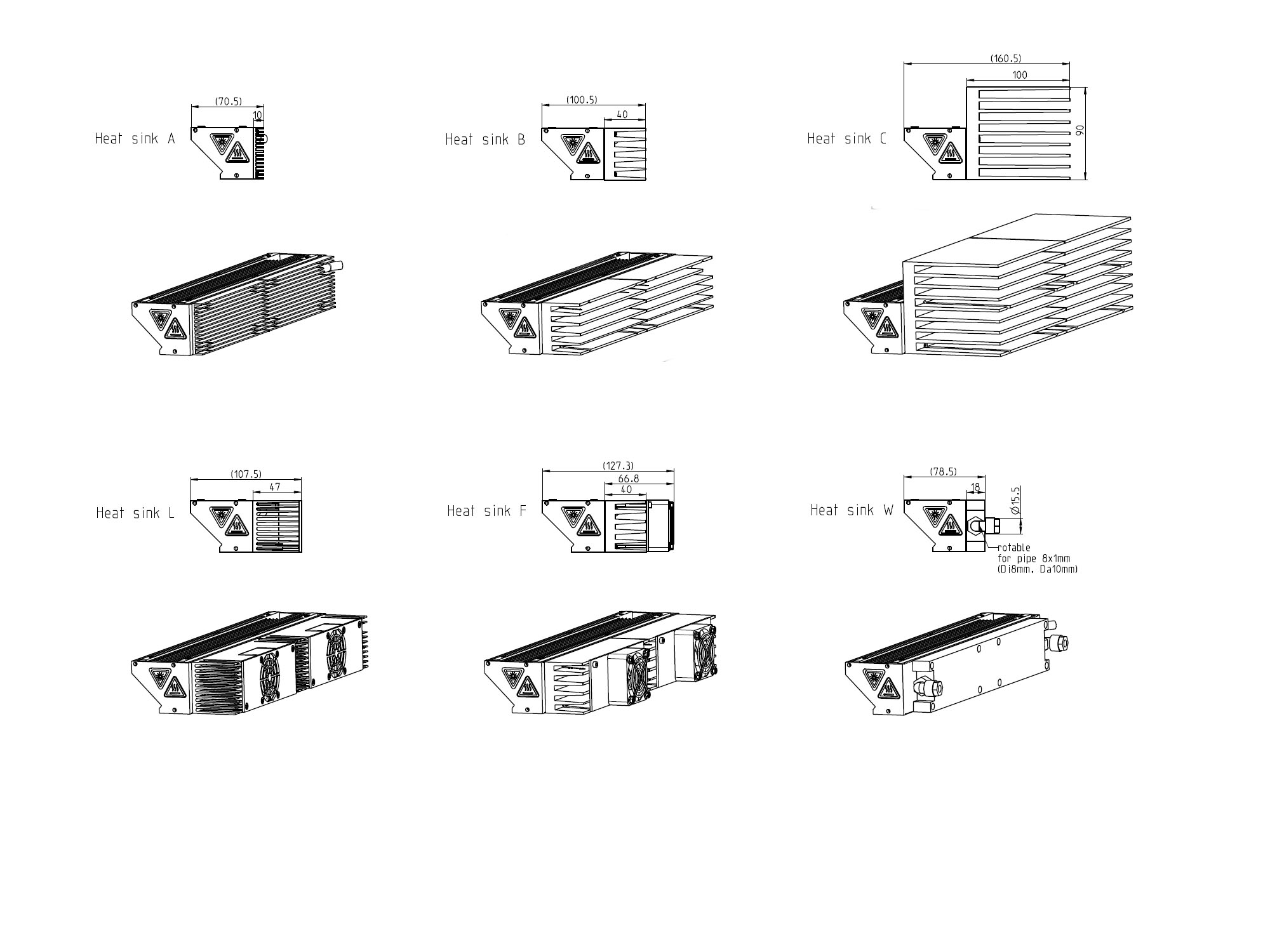

  Thermal coefficient
(W/K) @ 170 mm length		 Max. permanent power @ 35°C ambient temp. Notes
Passive heat sink “A” 1,63 30 % Depending on orientation
Passive heat sink “B” 1,52 40 %
Passive heat sink “C” 0,8 75 %
Fan cooling “L” 0,38 100 %
Fan cooling “F” 0,42 100 %
Water cooling “W” 0,25 100 % Depending on chiller
